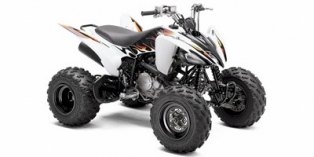

2010 Yamaha Raptor 250

2010 Yamaha Raptor 250 pictures, prices, information, and specifications.
Model Type
Sport
MSRP
$4,499
Dealers
Warranty
6
Insurance
Generic Type (Primary)
Sport
Manufacturer Country
Japan
Introduction Year
2008
Manufacturer Recommend Minimum Age
16
Parent Company
Yamaha
Display Name
Raptor 250
Year
2010
Make
Yamaha
Engine Type
Single-Cylinder
Cylinders
1
Engine Stroke
4-Stroke
Cooling
Air / Oil
Valves
2
Valves Per Cylinder
2
Valve Configuration
SOHC
Bore (mm/in)
74 / 2.92
Stroke (mm/in)
58 / 2.29
Displacement (cc/ci)
249 / 15.2
Compression Ratio
9.5:1
Starter
Electric
Fuel Requirements
Regular
Fuel Type
Gas
Carburetion Brand
Mikuni
Fuel Injector
No
Carburetor
Yes
Number Of Carburetors
1
Carburetor Size (mm)
29
Carburetion Type
Carburetor
Transmission Type
Manual
Number Of Speeds
5
Primary Drive (Rear Wheel)
Chain
Reverse
No
Hi / Low Range
No
Wheels Composition
Aluminum
Tube / Tubeless
Tubeless
Front Tire Diameter (in)
20
Rear Tire Diameter (in)
19
Chromed
No
Tire Brand
Dunlop®
Front Tire Width
7
Front Wheel Diameter
10
Rear Tire Width
10
Rear Wheel Diameter
9
Front Tire (Full Spec)
Dunlop® AT 20 X 7-10
Rear Tire (Full Spec)
Dunlop® AT 19 X 10-9
Front Brake Type
Dual Hydraulic Disc
Rear Brake Type
Hydraulic Disc
Front Suspension Type
Independent Double Wishbone
Front Travel (in/mm)
7.5 / 190.5
Front Adjustable Fork Pre-Load
Yes
Front Adjustable Rebound Damping
No
Front Central Suspension Strut
No
Steering Damper
No
Rear Suspension Type
Swing Arm
Rear Travel (in/mm)
7.9 / 200.7
Rear Adjustable Shock / Spring Pre-Load
Yes
Rear Adjustable Rebound Damping
No
Number Rear Shock Absorbers
1
Rear Stabilizer Bar
No
Air Adjustable
No
Steering Type
Manual
Steering Control
Handlebar
Length (ft)
5.33
Width (in/mm)
42.1 / 1069.3
Height (in/mm)
40.9 / 1038.9
Wheelbase (in/mm)
43.7 / 1110
Ground Clearance (in/mm)
3.9 / 99.1
Length (ft/ft)
5
Length (ft/in)
4
Wet Weight (lbs/kg)
330 / 149.7
Fuel Capacity (gal/l)
2.4 / 9.1
Engine Displacement to Weight (cc)
0.75
Seat Type
One-Piece
Adjustable
No
Seat Material
Vinyl
Seat Location
Driver
Folding
No
Seat Height (in/mm)
28.7 / 729
Number Of Seats
1
Frame
Steel
Body Material
Plastic
Hand Grips
Standard
Foot Peg Location
Driver
Hand Guards
No
Radiator Guard
No
CV Boot Cover
No
Front Fender
Standard
Rear Fender
Standard
Handlebars
Standard
Front Bumper
Standard
Rear Bumper
Standard
A-Arm Skid Plate (Rear)
No
Bash Plate (Front/Rear)
Yes / No
Warranty (Months/Condition)
6 / Limited
Battery Warranty (Months)
0
Driveline Type
4X2
Number Of Driveline Modes
1
Rear Unlocking Differential
No
Rear Solid Axle
Yes
Headlight Mounts
Standard
Halogen Headlight (s)
Standard
Headlight (s)
Standard
Light Type
Halogen
Metallic
No
